Shears - punching 2 independent hydraulic cylinders, 2 posts and 5 workstations Hydracrop Geka 55

General Specifications:

  : ME0230513
  Type:
  Manufacturer: GEKA
  Model: Hydracrop 55
  Manufacturing date: 2003

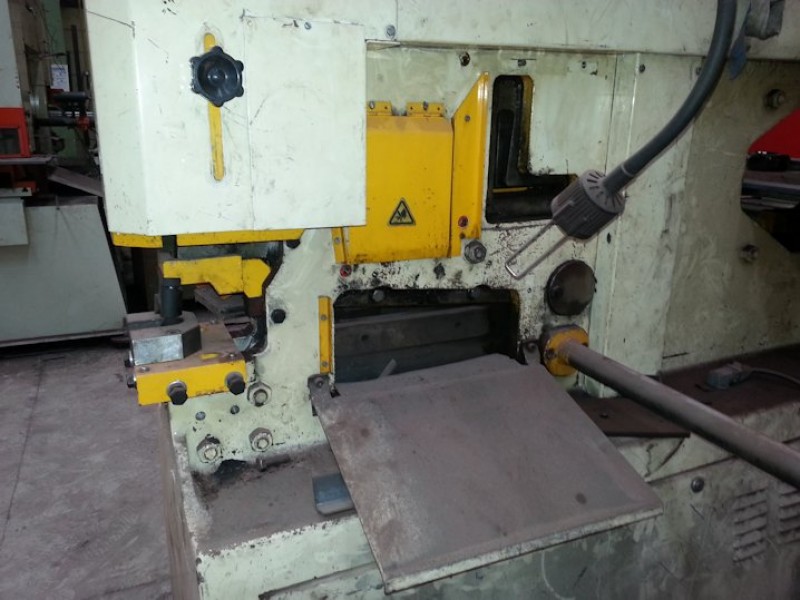

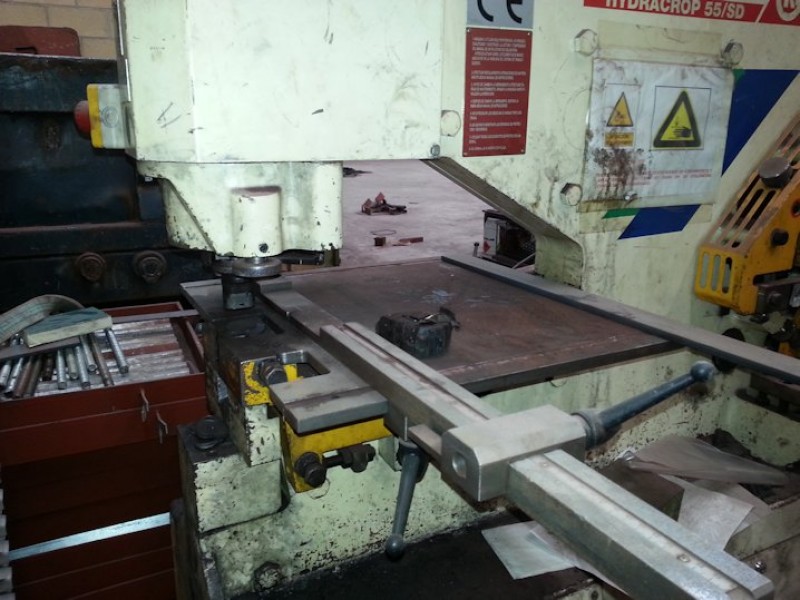

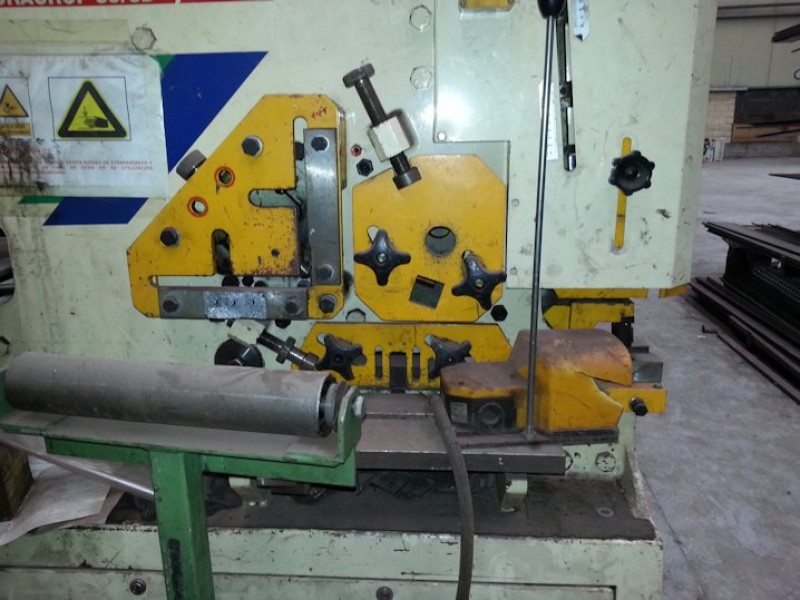

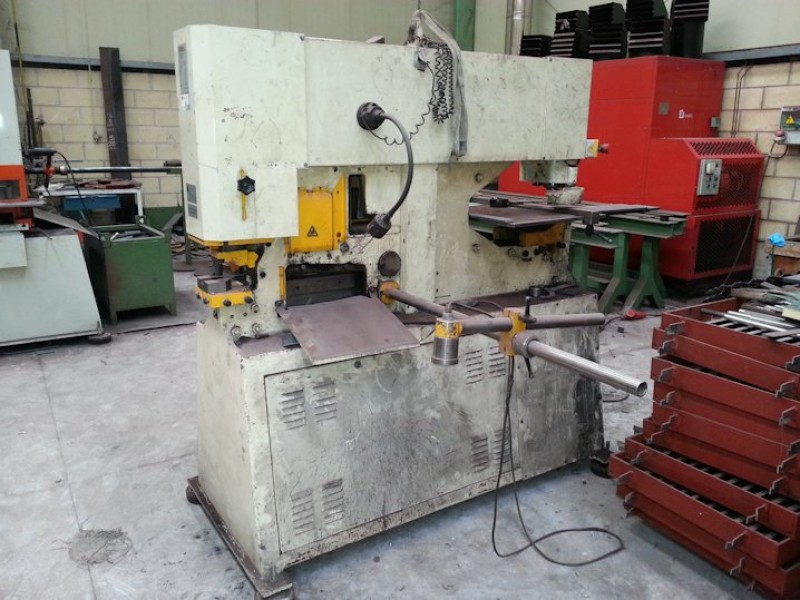

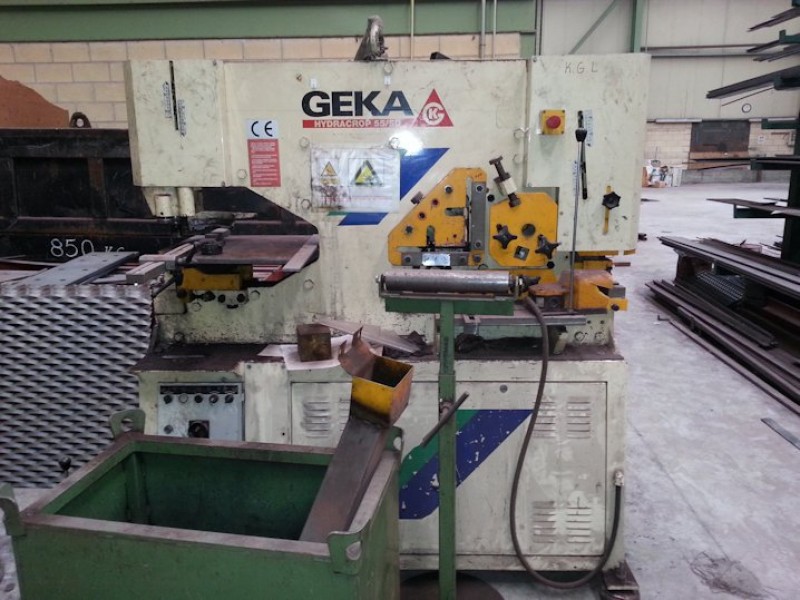

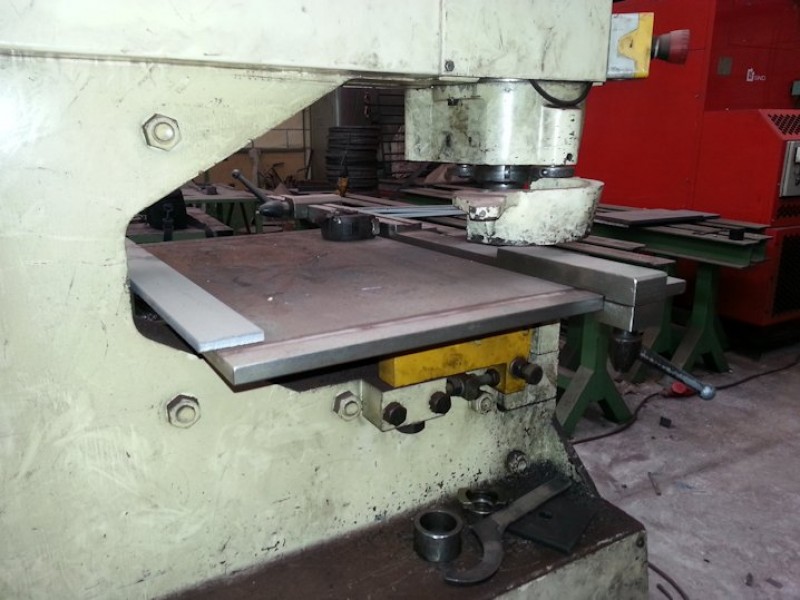

Images
Shears - punching 2 independent hydraulic cylinders, 2 posts and 5 workstations Hydracrop Geka 55

Shears - punching 2 independent hydraulic cylinders, 2 posts and 5 workstations Hydracrop Geka 55

Shears - punching 2 independent hydraulic cylinders, 2 posts and 5 workstations Hydracrop Geka 55

Shears - punching 2 independent hydraulic cylinders, 2 posts and 5 workstations Hydracrop Geka 55 Shears - punching 2 independent hydraulic cylinders, 2 posts and 5 workstations Hydracrop Geka 55

Shears - punching 2 independent hydraulic cylinders, 2 posts and 5 workstations Hydracrop Geka 55

Shears - punching 2 independent hydraulic cylinders, 2 posts and 5 workstations Hydracrop Geka 55

Shears - punching 2 independent hydraulic cylinders, 2 posts and 5 workstations Hydracrop Geka 55


Hydracrop Geka 55

Versatile and economical shear - punching 2 independent hydraulic cylinders, 2 posts and 5 workstations:


punching (power 550 kN)

fitted

shearing profiles L (1100 kN power)

plates cut

Ø bar cutting and □ and profiles

Is recommended to equip with a "production kit". This is a complete set of accessories including punching and notching tables, automatic top 1 m., 10 sets of punches and dies and a halogen lamp.

4 VERSIONS ON EVERY MODEL: A, S, AD, SD

VERSION A


Two cylinders driven machines.

5 job, fitted with tools for cutting L, round and square bars, rectangular notching and punching.

Quick change punch.

Tire cutting table with adjustable guides.

Two simultaneous jobs.

Prepared for "production kit" consisting of:

Wide table milimetrados stops punching.

Wide table milimetrados fitted with stoppers.

Electric stop a meter long with fine adjustment.

Lamp for better view of the cutting area.

10 sets of round punches and dies.

VERSION S
Version A, following attachments included as standard:


Greater speed by a powerful hydraulic.

Special equipment at reduced pressure and approach speed.

AD VERSION


The same features for version A and has a deeper frame neckline and appropriate structure for sheet work.

SD VERSION


Includes the same features as the S version and has a deeper frame appropriate structure for cleavage and metal work.

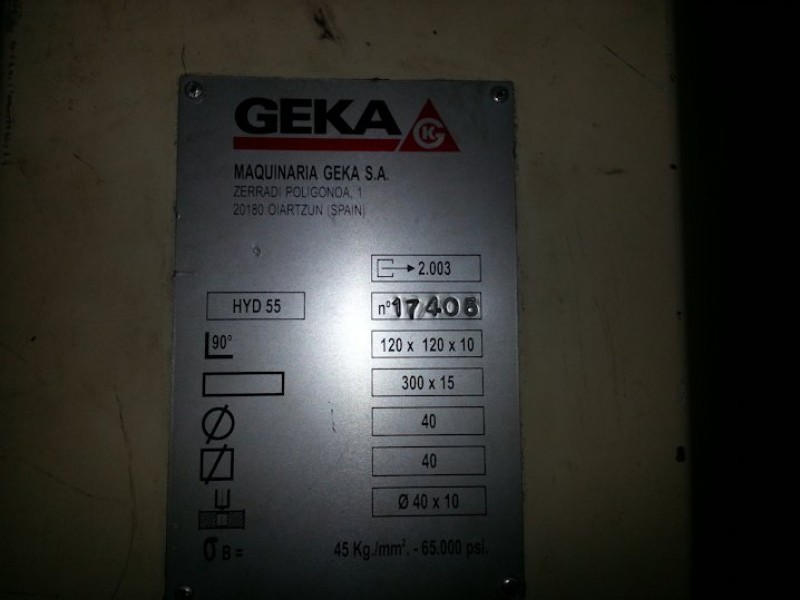

CAPABILITIES


Cutting Plate 300 x 15 mm
200 x 20 mm
Punching Ø 40 x 10 mm.
Ø 20 x 20 mm.
L cut at 90 120 x 120 x 10 mm
Court of solid rods Ø 40 mm and 40 mm □
Rectangular notching 90 x 42 x 10 mmCizalla - punching 2 independent hydraulic cylinders, 2 posts and 5 workstations Hydracrop Geka 55


Shears - punching 2 independent hydraulic cylinders, 2 posts and 5 workstations Hydracrop Geka 55
